£626.99

25 in stock

SKU: YK20FAH Category:

Description

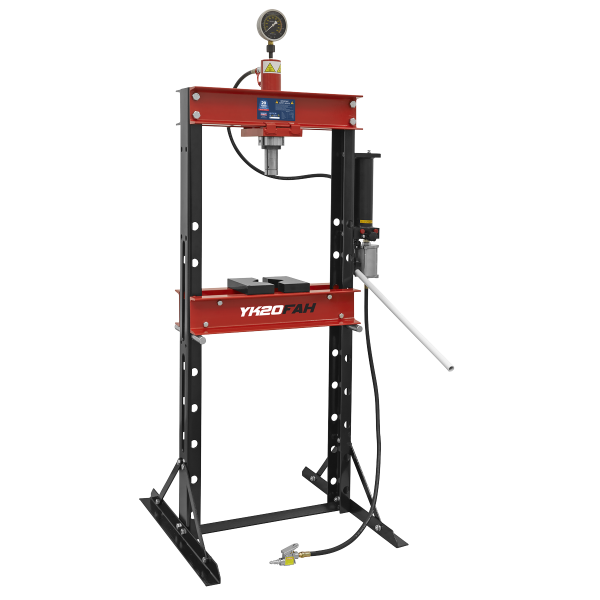

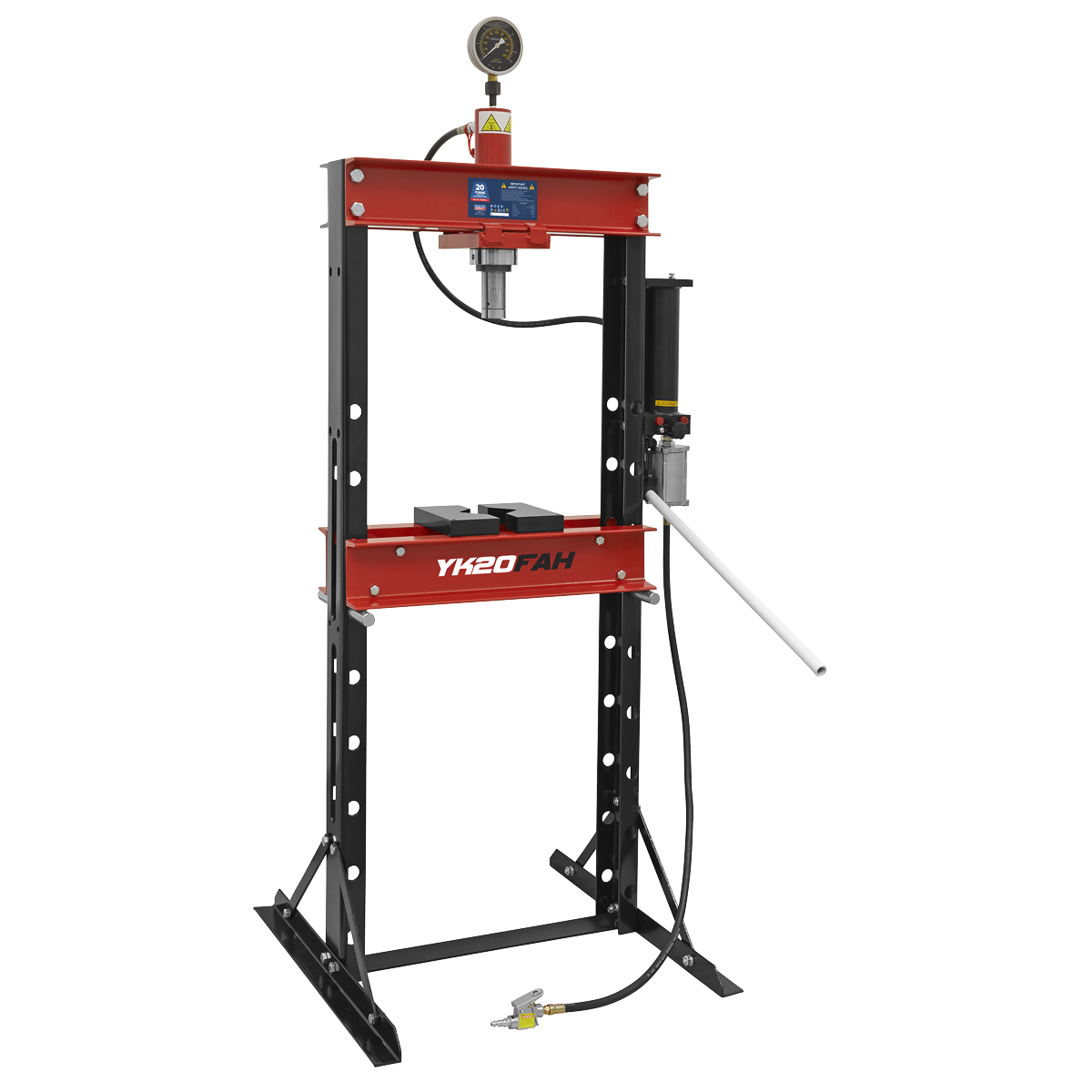

• Steel frame construction with side mounted air motor powering hydraulic pump unit.
• Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Model No: YK20FAH
Air Consumption: 7.06cfm
Bench or Floor Mounting: Floor
Brand: Sealey
Capacity: 20 Tonne
Gauge Included: Yes
Lateral Ram Travel: 176mm
Maximum Height - Ram to Table: 1018mm
Minimum Height - Ram to Table: 58mm
Nett Weight: 93kg
Operating Table Width: 542mm
Optional Accessories: YKPP8 - Press Pin Set
Overall Height: 1796mm
Ram Diameter: Ø48mm
Ram Stroke: 185mm
Table Aperture: 105mm
Type: Air/Hydraulic
Working Table Depth: 211mm
Working Table Width: 630mm
