£1,534.00

25 in stock

SKU: YK309FAH Category:

Description

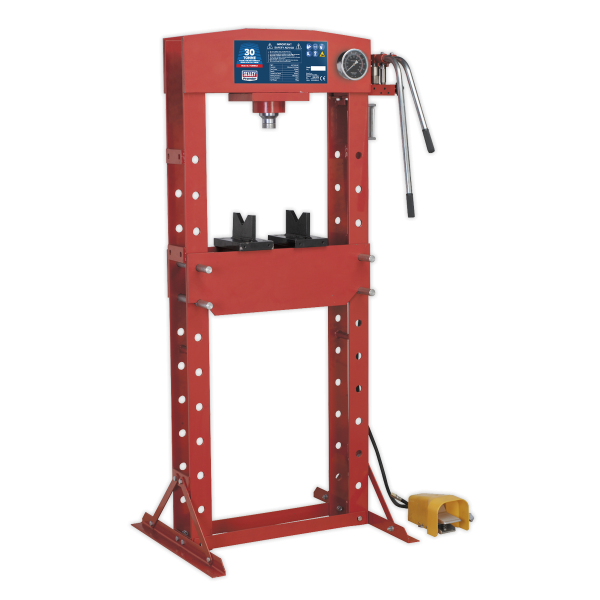

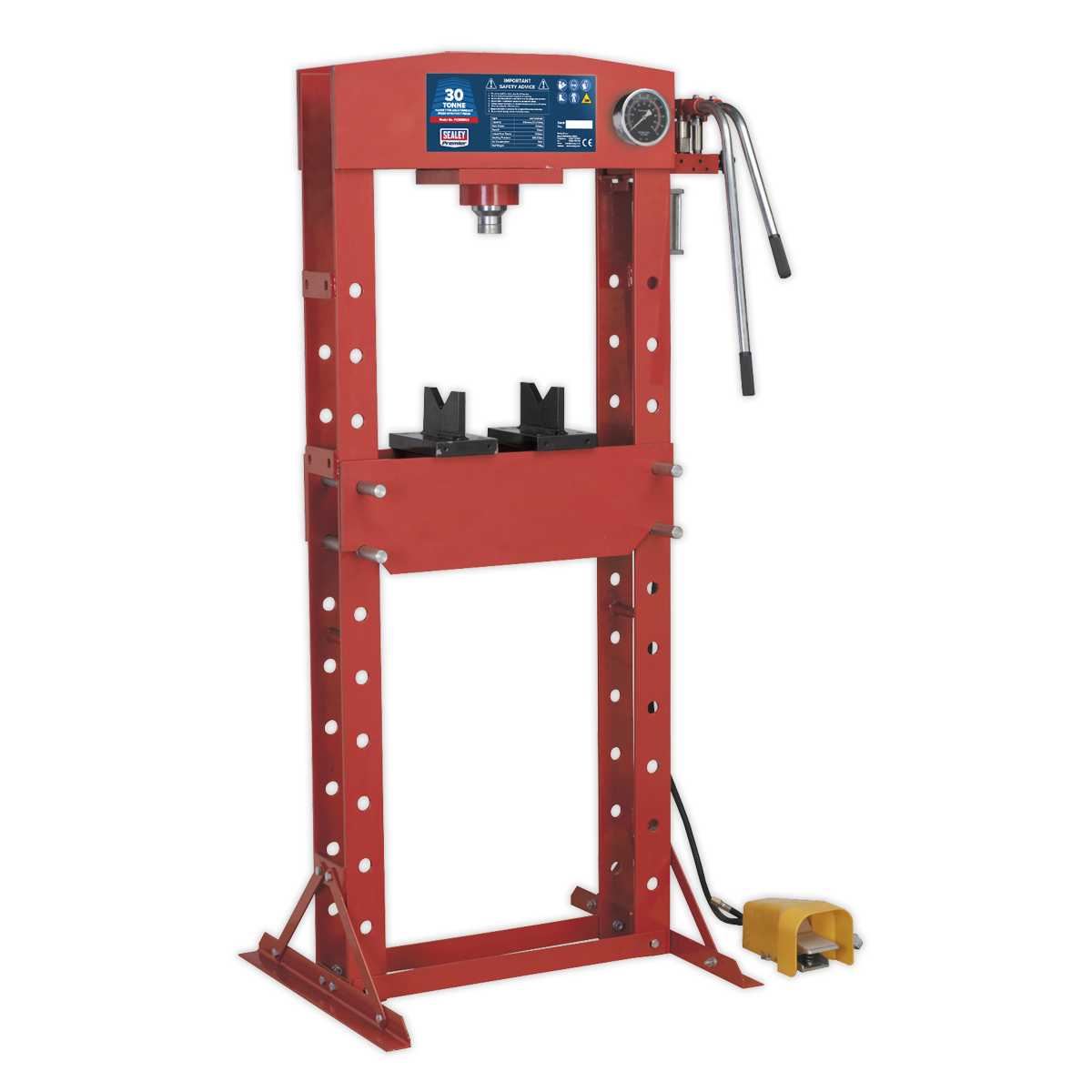

• Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
• 2-Speed manual operation.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• 2 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Model No: YK309FAH
Air Consumption: 9cfm
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 200mm
Maximum Height - Ram to Table: 1030mm
Minimum Height - Ram to Table: 150mm
Nett Weight: 168kg
Operating Table Width: 535mm
Optional Accessories: YKSG30 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1801mm
Ram Diameter: Ø70mm
Ram Stroke: 150mm
Table Aperture: 164mm
Type: Air/Hydraulic
Working Table Depth: 184mm
Working Table Width: 695mm
