Description
• Specially designed for testing insulation on high voltage cables.
• Suitable for hybrid and electric vehicles.
• Supplied with test leads, batteries and storage case.
• Conforms to EN 61010 CAT III (1000V).
£259.99
25 in stock

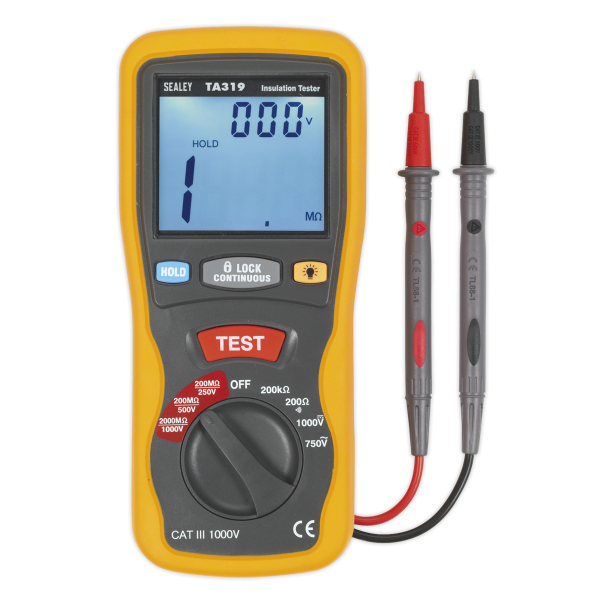

Model No: TA319
Brand: Sealey
Nett Weight: 1.29kg
Voltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
Resistance: Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
Insulation Resistance: Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
Continuity Test: Active Sound Level; ≤40Ω, Test Current; ≤200mA
Operating Temperature: 0ºC to +40ºC, (<80%R.H)
Storage Temperature: -10ºC to +60ºC, (<70%R.H)
Batteries: 6 x 1.5V (supplied)
