£188.99

25 in stock

SKU: PT1000G Category:

Description

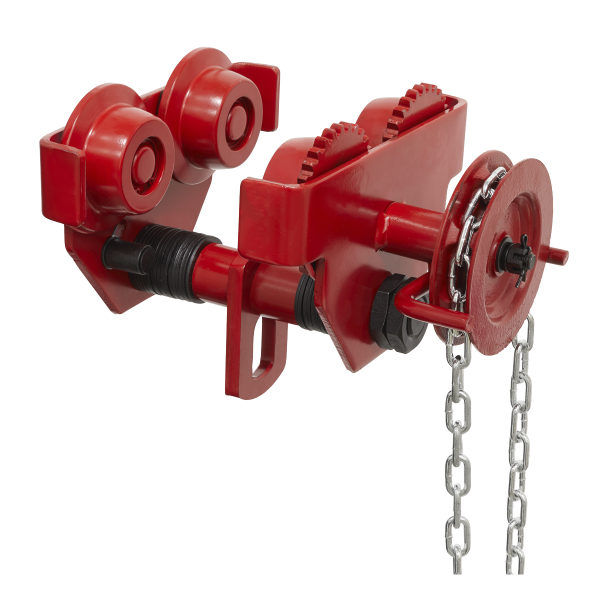

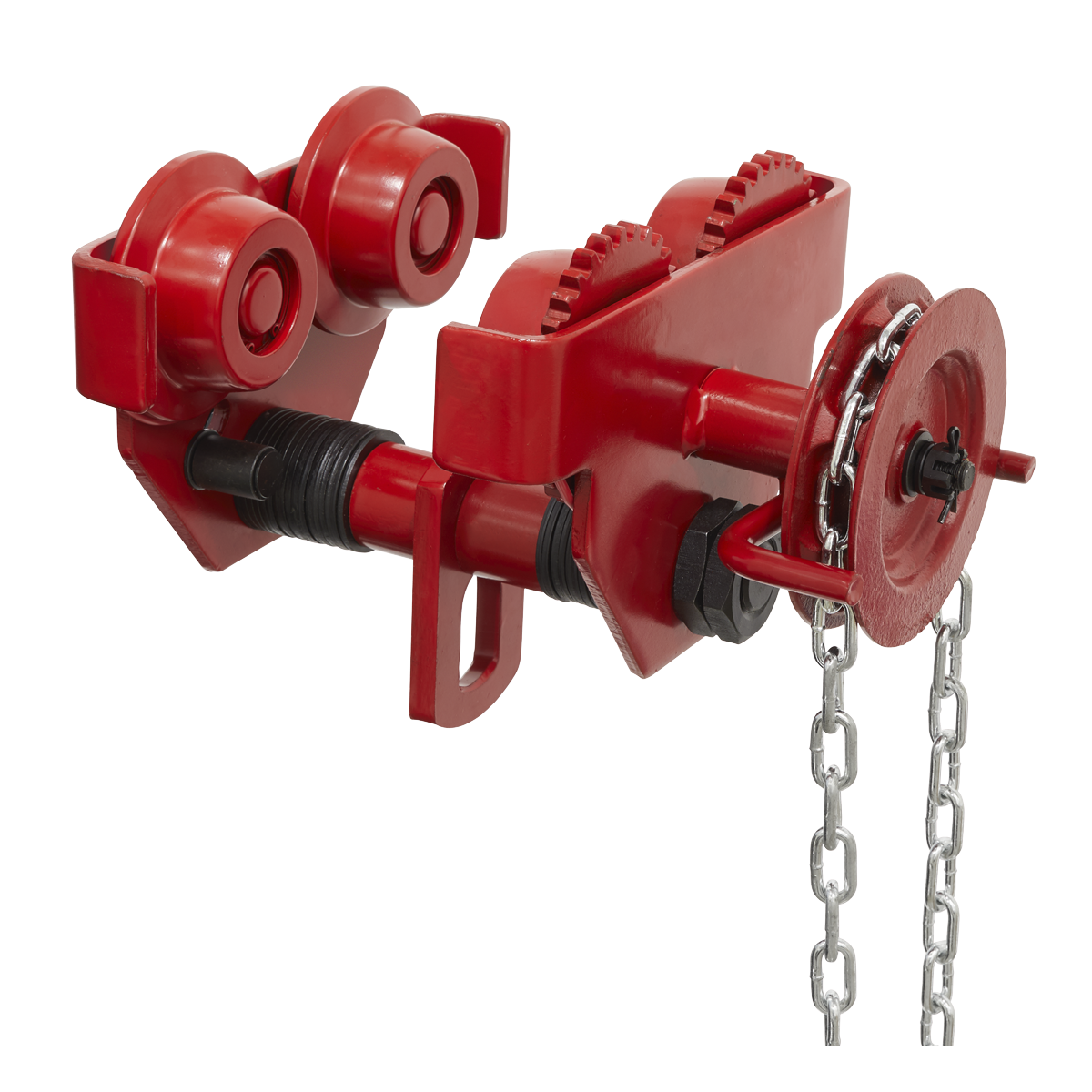

• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Model No: PT1000G
Brand: Sealey
Nett Weight: 17kg
Capacity: 1000kg
Test Load: 1500kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 1000mm
A: 255mm
B: 205mm
C: 135mm
D: 104mm
E: 128mm
Weight: 17kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 2500mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 6000mm
Refer to catalogue for diagram.:
