£94.00

25 in stock

SKU: PT500 Category:

Description

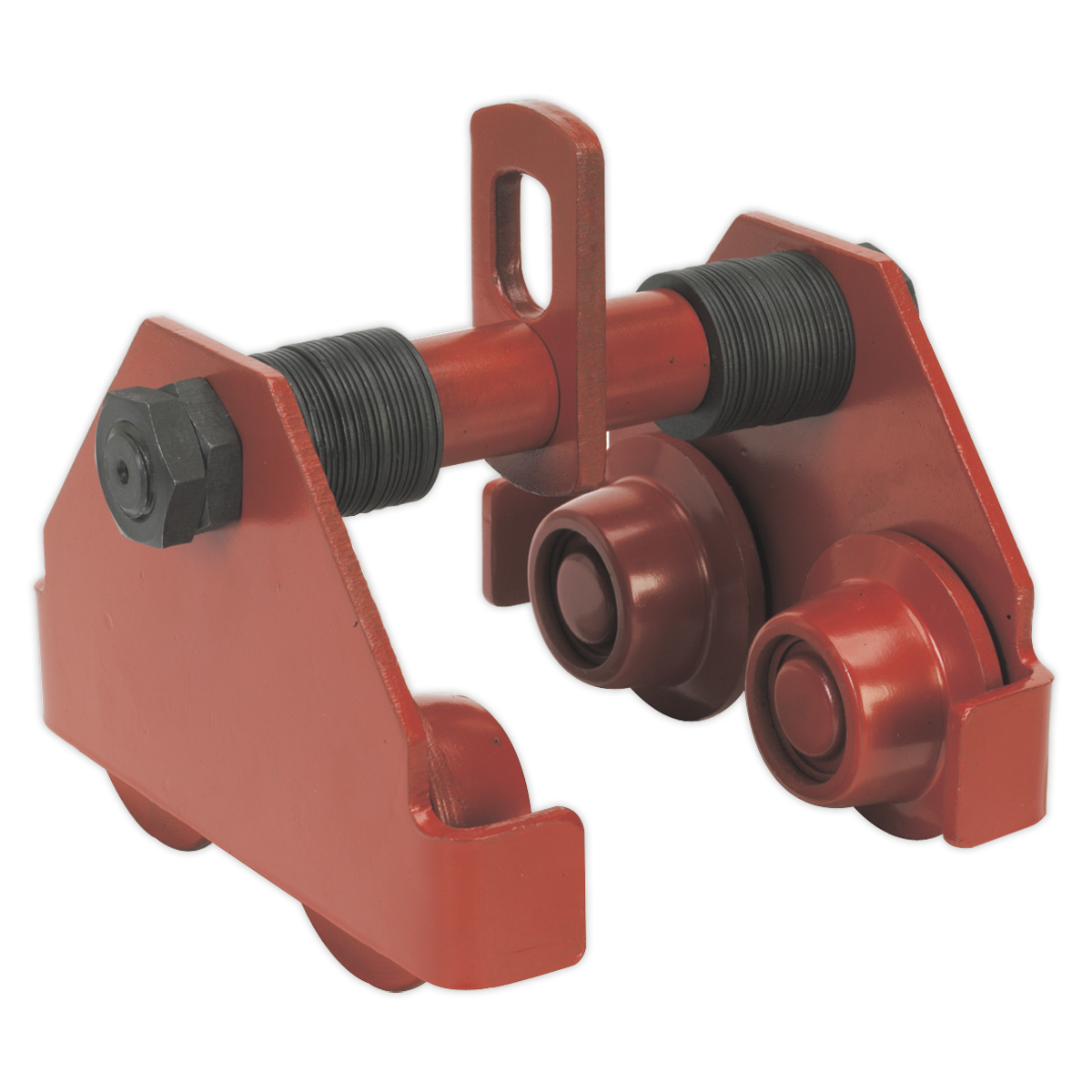

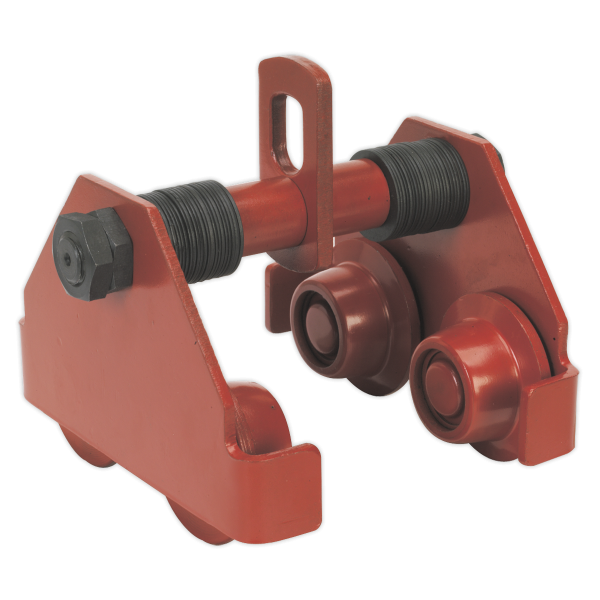

• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Model No: PT500
Brand: Sealey
Nett Weight: 7kg
Capacity: 500kg
Test Load: 750kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 800mm
A: 212mm
B: 115mm
C: 115mm
D: 90mm
E: 115mm
Weight: 7kg
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 8000mm
Refer to catalogue for diagram.:
