£215.99

25 in stock

SKU: PT2000 Category:

Description

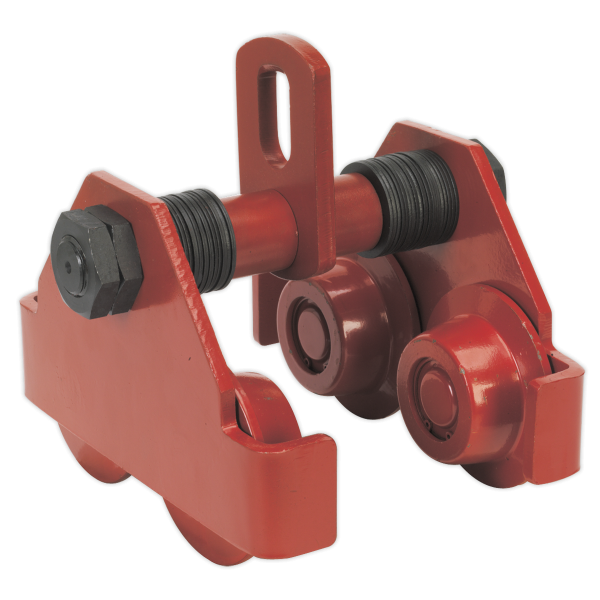

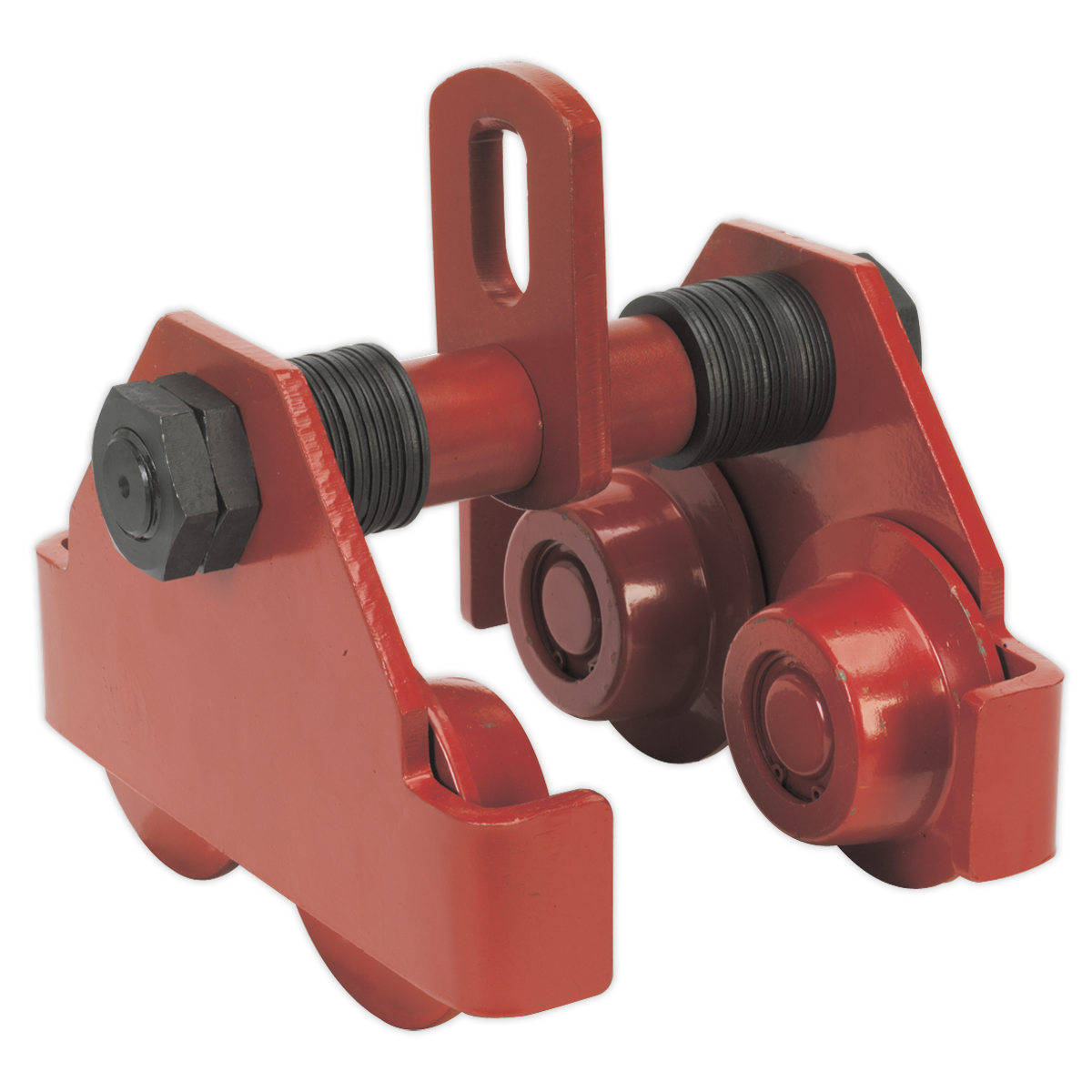

• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Model No: PT2000
Brand: Sealey
Nett Weight: 20kg
Capacity: 2000kg
Test Load: 3000kg
Track Width Adjustable Range: 76-165mm
Minimum Curve Radius: 1300mm
A: 305mm
B: 150mm
C: 150mm
D: 130mm
E: 152mm
Weight: 20kg
Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
Maximum Distance Between Spans: 9000mm
Refer to catalogue for diagram:
